GSM Wireless Alarm module GSM module MC2700

GSM Wireless Alarm module GSM module MC2700

General Features:
1) CDMA Dual Band 800/1900MHz
2) Dimensions: 32.0*30.0*4.5mm weight: 6g
3) Operating Temperature Range: -20 C~+60 C
4) Storage Temperature Range: -30C~+85C
5) Performance: Operating Voltage Range: 3.0V~3.6V/Typical: 3.3V
6) Current Consumption Typically: Idle Current: 7mA@-75dBm Call Current: 235mA@-75dBm Max Current: 650mA@-105.5dBm
7) TX Power: 800MHz: 23dBm~30dBm@-105.5dBm 1900MHz: 18dBm~27dBm@-105.5SdBm
RX Sensitivity:-105.5dBm

Interfaces:
1) Half-Size Mini PCI-Expresscard U.FL-R-SMT 50Ω Antenna Connector Antenna Solder Pad
2) USB 2.0 Full Speed/Multi Channels UIM Card Interface: 1.8V/3.0V

Data Features:
1) CDMA2000 1X/EV-DO Rev.A
2) Max Downlink: 3.1Mbps Max Uplink: 1.8Mbps
3) System Drivers: Windows 2K/XP/Vista Windows CE 5.0/6.0 Linux

SMS Features:
1) Support TEXT Mode
2) Point-to-Point MO/MT
3) SMS Cell Broadcast

Voice Features:
1) High-quality Voice
2)Vocoders EVRC & 13K QCELP
4) Volume Control Support DTMF Support PCM

AT Command Set
Common AT Commands ZTE Proprietary AT Commands China Telecom AT Commands

CDMA module

mini pci-e

wireless modem cdma

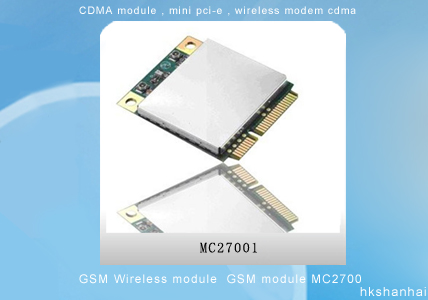

GSM Wireless Alarm module GSM module MC2700 Images
